Manta Ray - Gold Series Acrylic

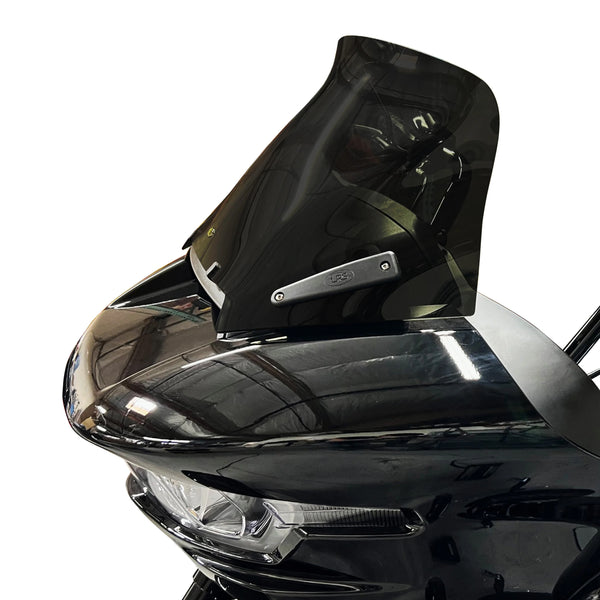

Designed to compliment the modern styling of the 2023.5+ Road Glide (new style fairing). We have developed the Manta Ray for maximum wind protection offering style, a quiet ride, and less buffeting. The Manta Ray includes mounting brackets and a premium bolt kit.
LRS Recurve Windshields are made from the highest optical grade acrylic and polycarbonate materials, allowing for a crystal clear look not only on the bike but for rider's view as well.
Remember: LRS Recurve Windshields are made to be looked over, not through.
Specs:
- Width: 24"
- Thickness: (.135")
- Material: Impact Modified Acrylic
- Recurve: Yes
- Tints: Light, Medium, Dark
- Sizes: 9", 11"
Fitment:
- 2023-2024 Harley-Davidson CVO Road Glide (FLTRXSE)
- 2024 Harley-Davidson Road Glide (FLTRX)
- 2024 Harley-Davidson CVO Road Glide ST (FLTRXSTSE)
Install:
- Remove the factory windshield using T25 Torx driver
- Place Risers on top of mounting points (it may be easier to place the shield down first then lift the shield and slide the Riser into place to keep the Riser from moving)
- Place windshield onto fairing and line up mounting points
- Place the Cover Plate and start threading bolts by hand. Start each bolt on each side.
- Tighten down to hand tight using a 3mm Allen Key.
Download the install guide here
I ordered 11 inch dark tint I like it I could hear the radio doing 80 it was kinda pain in the but to put on other than that it's well worth the buy
The right windshield long ride should come standard on the new 2024 Harley Davidson
i used LRS on my Streetglide for the last ten years and never had a problem with it.. When I bought my new 2024 Roadglide it did not hesitate to order another LRS. As usual the quality is top notch and fits and looks great. May have to order a taller one when my wife rides with me tho. I highly recommend LRS!!!
So I picked up thr 11" to give me a long distance/colder weather windshield for my 24 Roadglide, as I run a 9" currently. I have ran LRS on at least 5 motorcycles, sometimes 2 variants for a bike as well.
Quality and finish are as expected and just amazing as usual. Shipping and communication are top of the line.
This shield is a work horse! It's built to create a pocket for the rider and it does it very well. Air is redirected above and around me more than my 9", which is impressive. Over stock this would be night and day. I witnessed bugs get redirected above and to the side of me on a 600+ mile trip. My radio was cleat and I was comfortable, enjoying the travels. Great purchase, keep up the good work.
Awsome hear radio no wind in face can wear a hat agian
